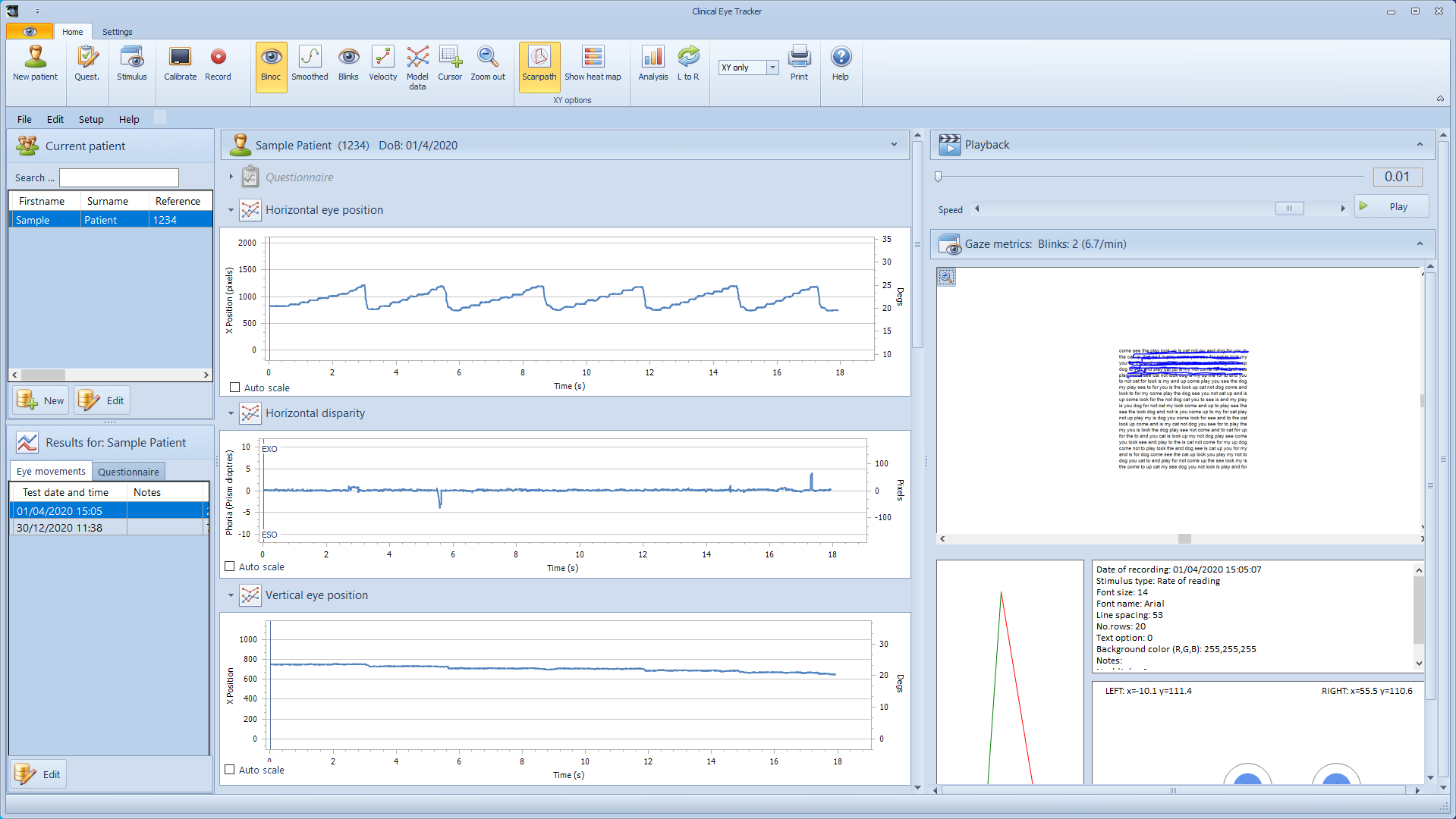

The main Control Screen contains seven panels as shown below:



The relative size of the panels can be changed by dragging their corresponding borders and most of the panels can be minimised by clicking on the arrow next to the panel heading.

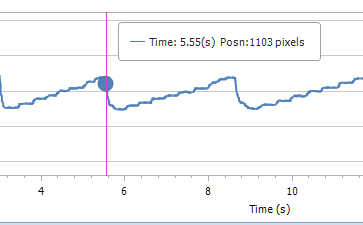

A cursor showing the data at the cursor position can be enabled by select the Cursor button in the main toolbar (see below).




  1. Database panel
  2. Horizontal eye position panel
  3. Horizontal disparity panel
  4. Vertical eye position panel
  5. Playback panel
  6. XY panel
  7. Position metrics panel
  8. Right and Left eye horizontal
