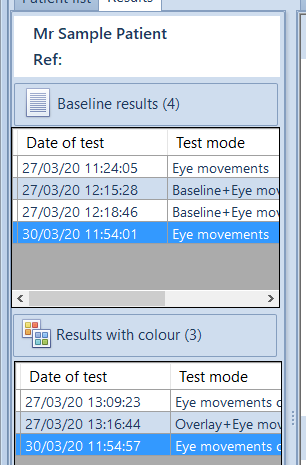

If an eye movement recording has been made as part of a Baseline or Colour test, this will be indicated in the results list with an affix of "+ Eye movements" as shown below.



To display the eye movement recordings, select the Eye movements tab.

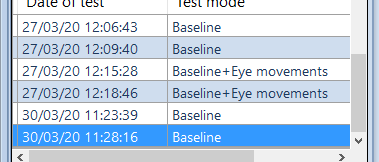

The results lists will now just show results where an eye movement recording was made.

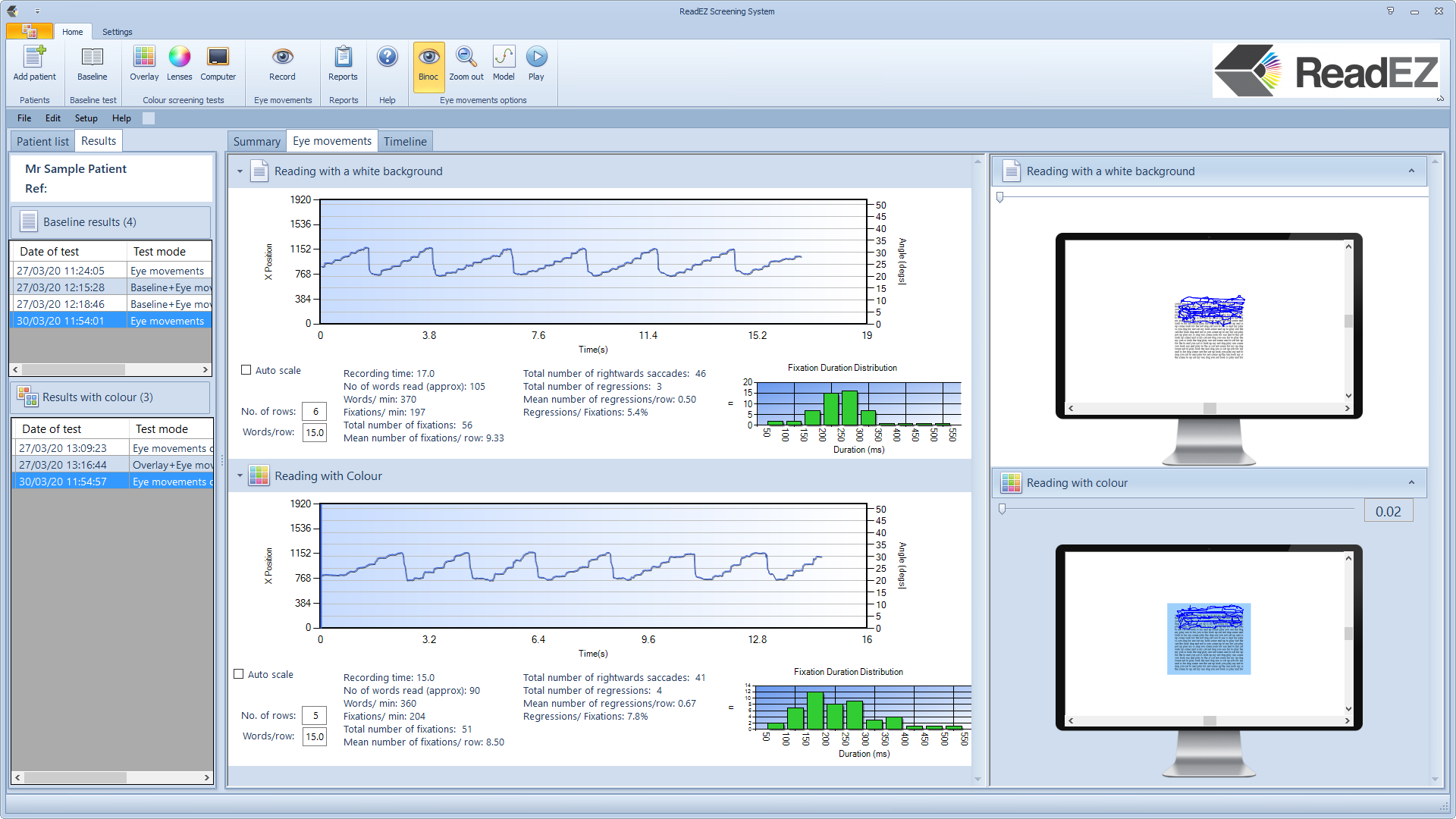

By default, the most recent Baseline and Colour result will be displayed as shown below.




The central panel shows the horizontal eye movements for Baseline and Colour along with some summary statistics.


The panel on the right shows the X-Y display showing the scan paths for the Baseline and Colour results against a thumbnail of the stimulus.

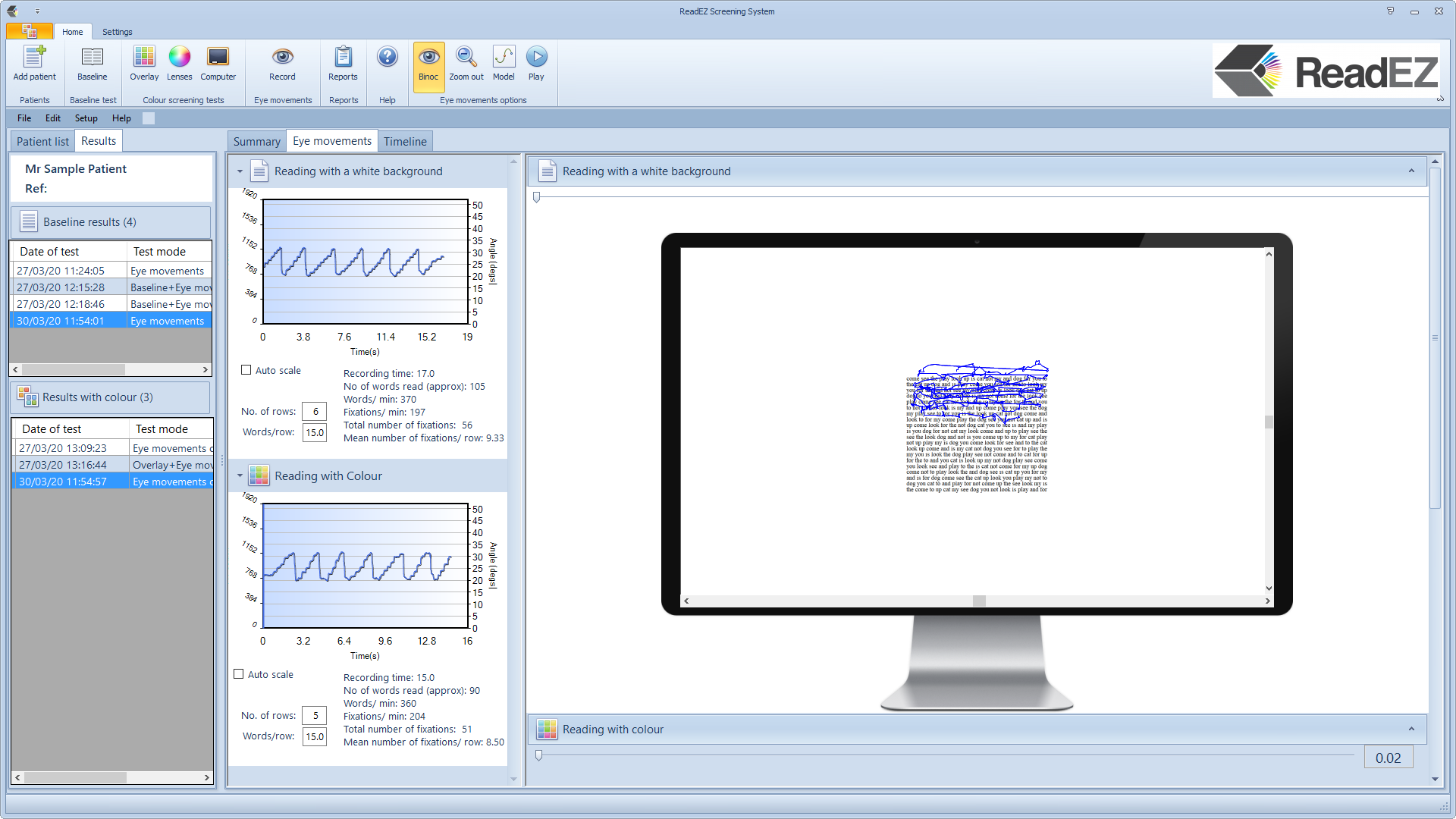

The panels may be resized by dragging the panel borders.  For example, the X-Y display can be enlarged as shown below.

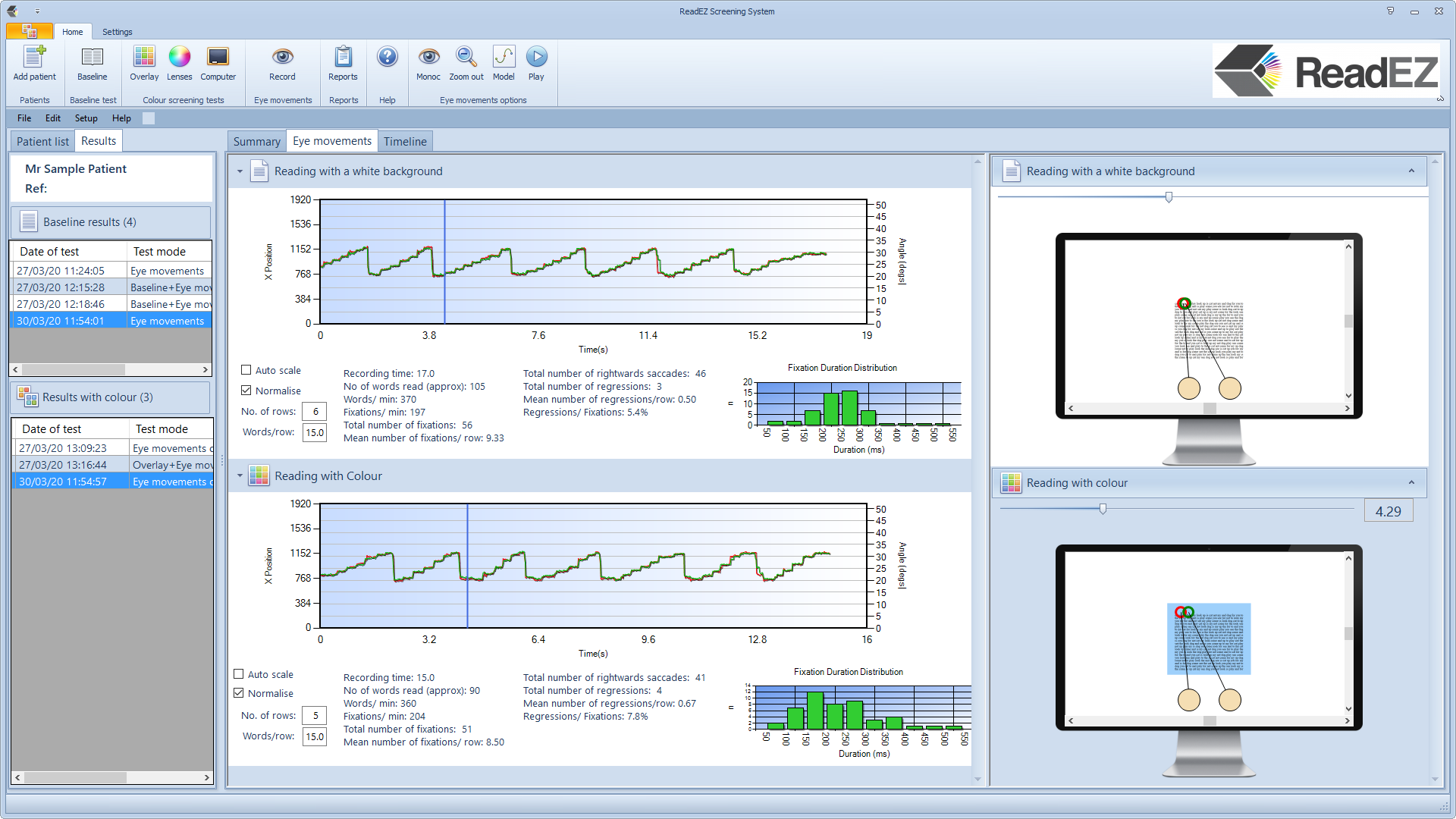

The recording may also be shown as a "movie" by selecting Play from the main toolbar.



A cursor will move along the horizontal eye movement traces and a graphic will appear showing where the patient was fixating at that moment in time.  By default, this shows the mean position of both eyes.


The scroll bar above each X-Y display allows manual scrolling through the recording.  The vertical and horizontal offset of the X-Y display can be adjusted using the scrollbars on the right and to the bottom of the X-Y thumbnail.


Clicking on the Binoc button in the toolbar change the display to Monoc and displays a red and green trace representing the right and left gaze positions respectively.



This provides useful information about binocular status throughout the recording,


Each panel is described in detail in the following pages:
