Polarised Monitors

Thomson Software Solutions has been at the forefront of developing clinical quality polarised monitors.

We currently supply a 27'' circularly polarised monitor and a high brightness 24'' linearly polarised monitor.

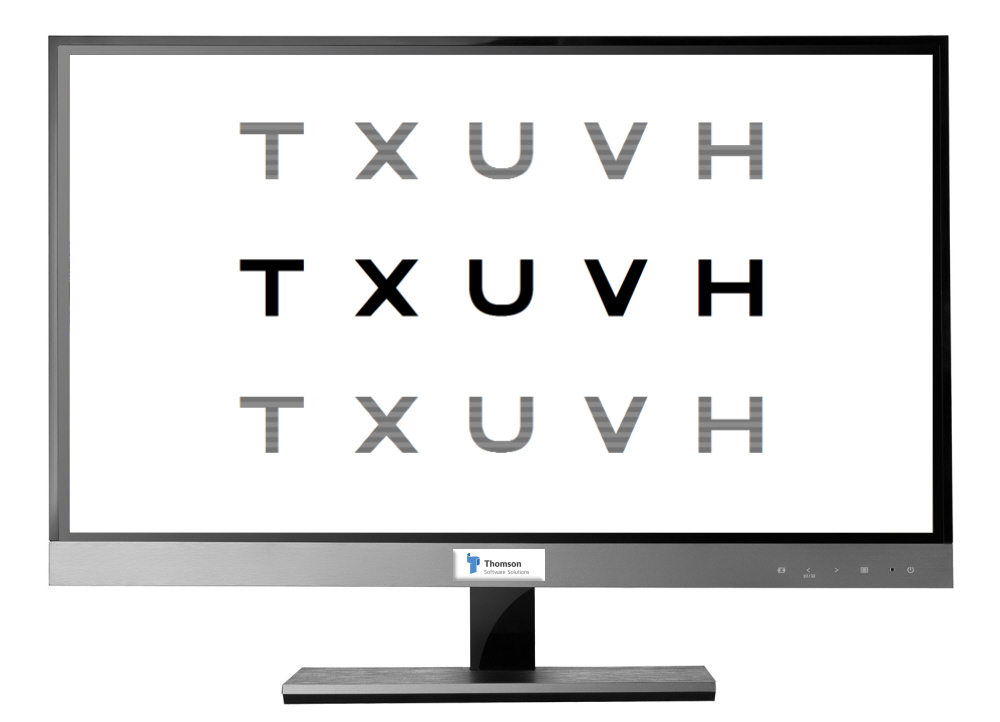

Clinical Quality 27'' polarised monitor available from Thomson Software Solutions

Both monitors incorporate patented Micropol technology so that all the odd rows of pixels are polarised in one direction while all the even rows are polarised in the opposite direction.  With the patient viewing the monitor through cross-polarised filters, stimuli can be presented to one eye by drawing on the odd rows, the other eye by drawing on the even rows and to both eyes by drawing on odd and even rows.

This opens us exciting new opportunities for binocular refraction and binocular vision testing.  It can also be used to generate some stunning 3D images.

Test Chart 2016 includes a wide range of tests to exploit this new technology.

• A polar icon is shown on the Primary toolbar giving access to the Polatest
• The polarised fixation disparity tests are used instead of those requiring Red/Green dissociation
• Additional tests are included under the Refrn group for binocular balancing
• Group 9 of the fixation images now contains a large selection of polarised 3D images




More information

• Setting up a polarised Monitor
• Setting program options
• Polatests
