The Cover test category allows virtually any image to be displayed on the screen to act as a fixation target while a cover test is performed.  The program reads the image file from the  Stimuli\Cover test sub-directory of the ...\Eye Tracker Data\ directory.  To add a new image, select Add image and select the image file that you wish to add to the list.

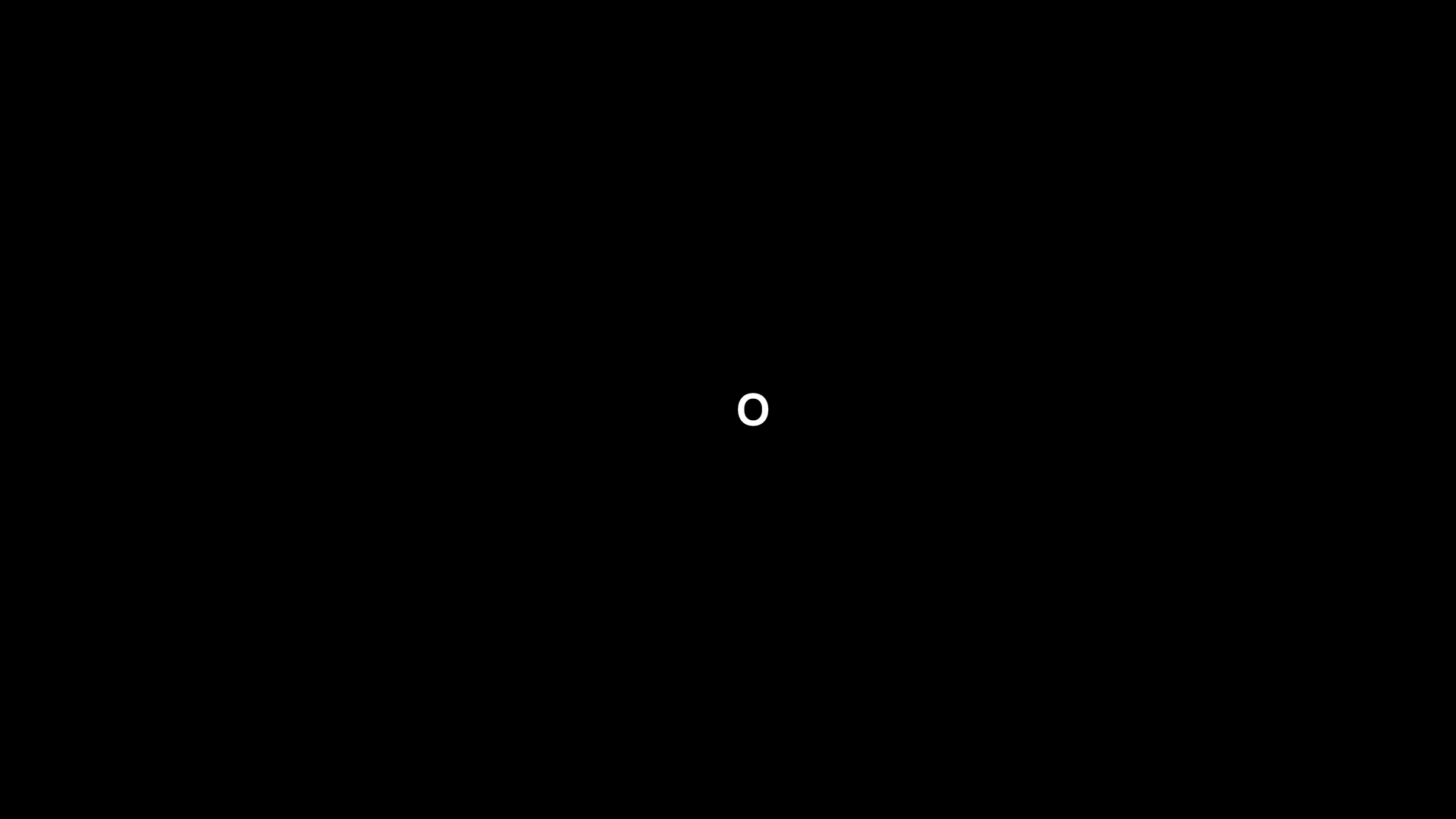

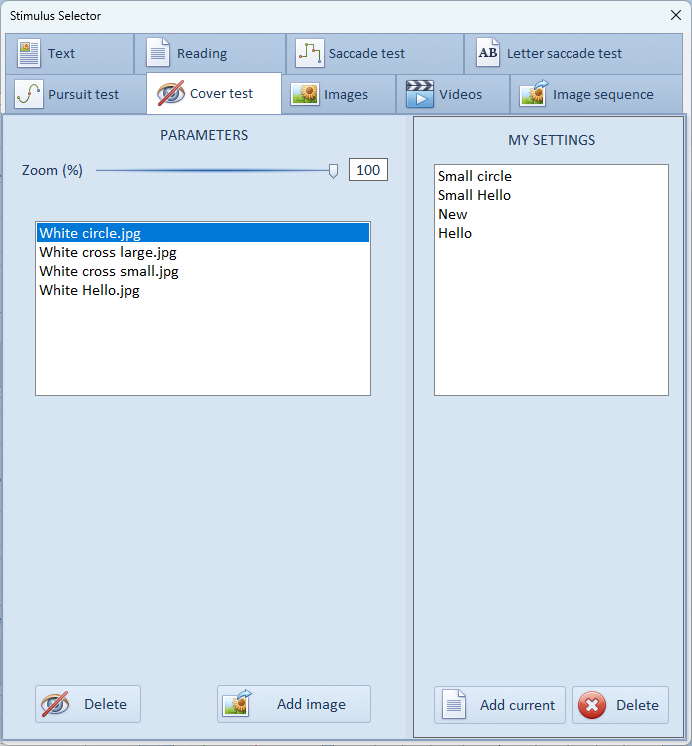

The image is shown on the patient's screen and a thumbnail is shown on the control screen as shown below:



The size of the image can be changed using the Zoom scroll bar in the stimulus selector window.


My Settings


To save a specific stimulus configuration so that it can be used again, select Add current in the My Settings panel.  Enter a name for this stimulus configuration and select OK. This name will be added to the list and selecting this name in future will automatically display the corresponding stimulus configuration.


A stimulus configuration may be deleted from the list by selecting it and the selecting Delete.
