The FBSV test results will be added underneath the name of the selected patient and a green dot will show that this is the current record.

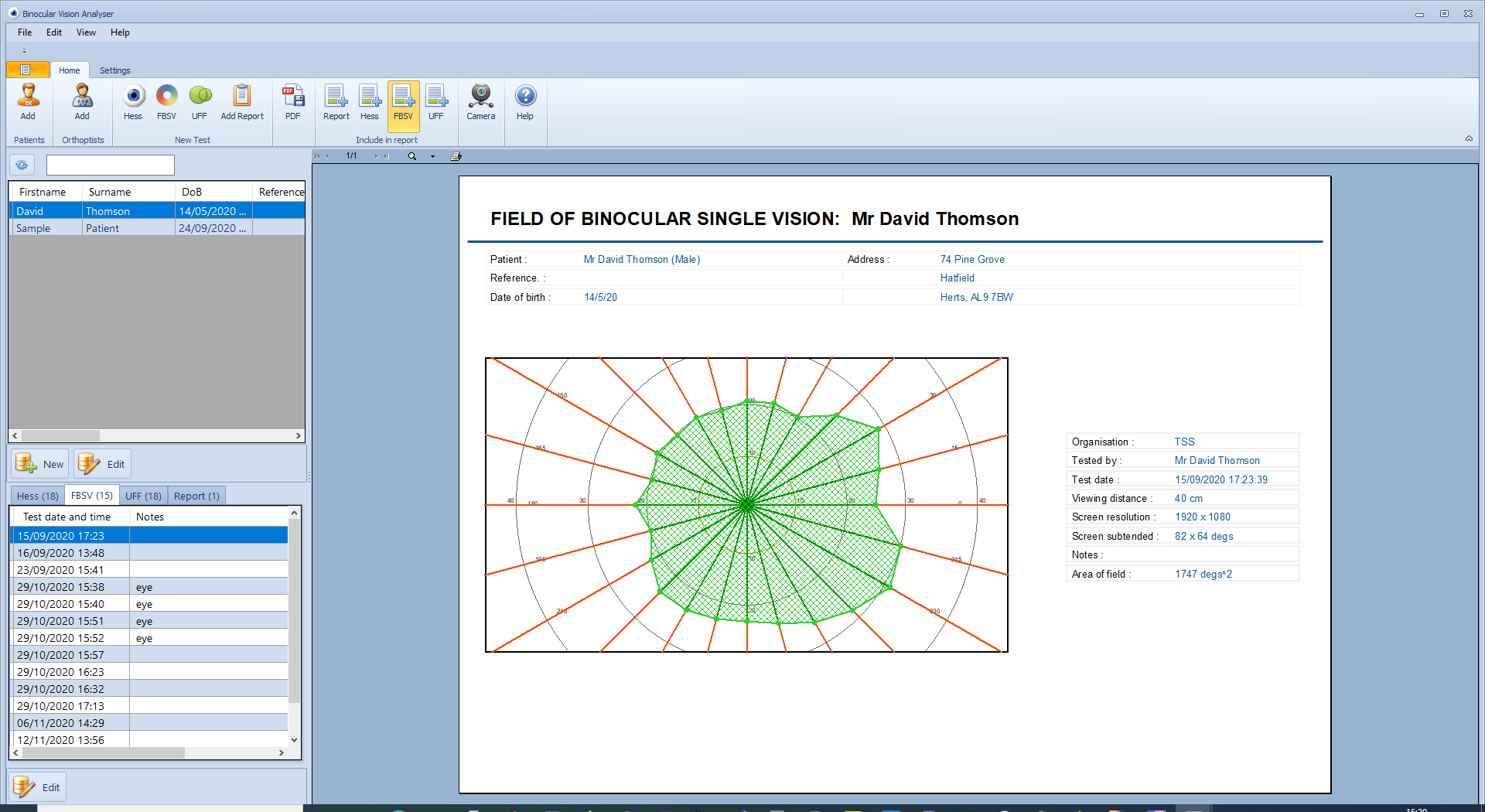

In Single Diplopia point mode, the results of the FBSV test will be shown in the familiar format in the report panel as shown below.

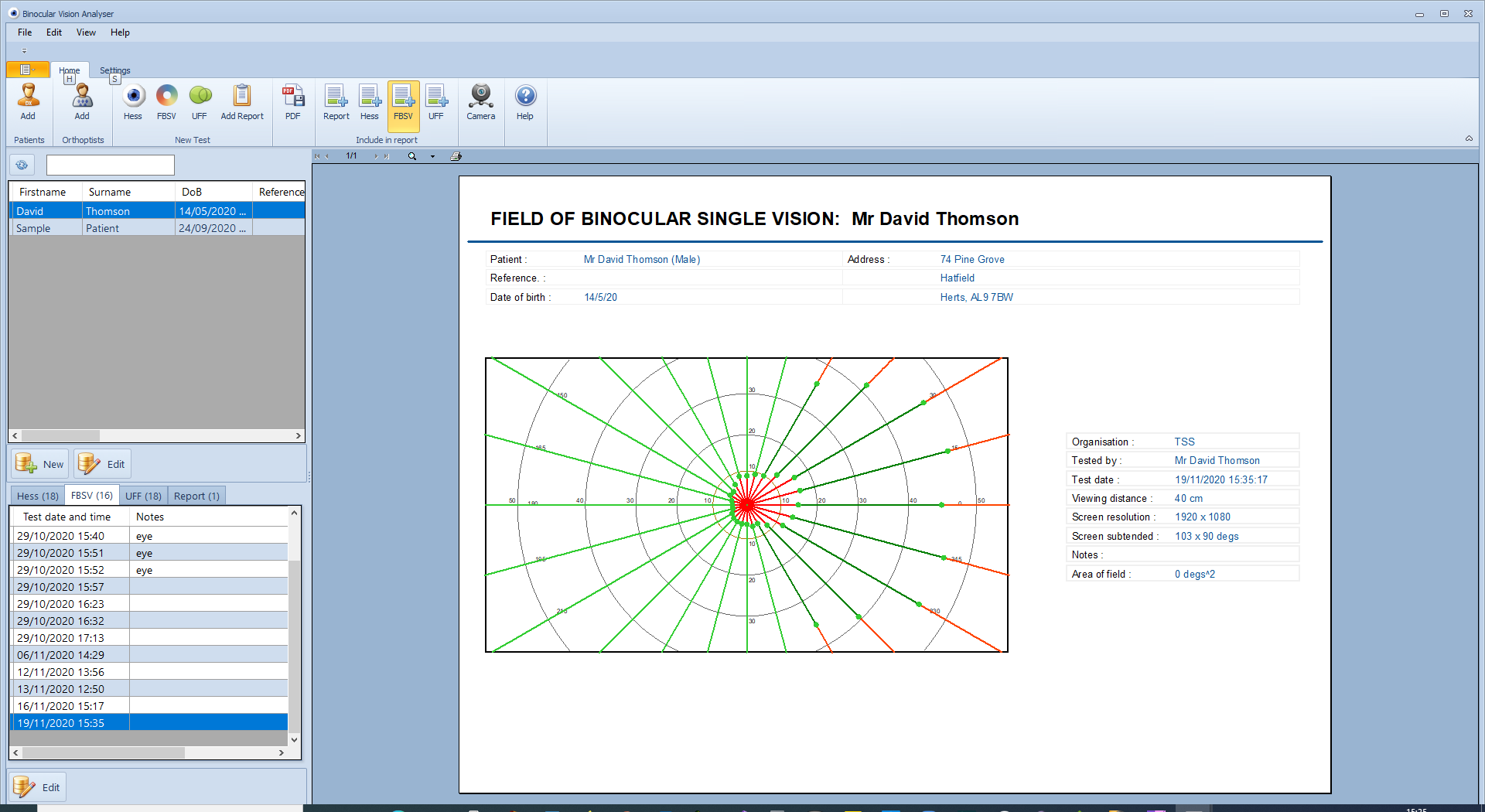

In Multiple Diplopia point mode, the results of the FBSV test will be shown as shown below.



The green and the red lines along each radial represents areas of single and double vision respectively.


The patient's details are shown above the charts and the test conditions are shown beside the charts.


Zooming in

To zoom in on the report either click on the report of the small magnifying glass icon at the top of the report.  To select a specific  zoom level select the small down arrow next to the magnifying glass.


The magnified report can then be scrolled around by simply dragging the report using the mouse while the left mouse button is held down.


Printing

To print the current report, click on the small printer icon at the top of the report panel.  This will display the printer select dialogue window.


The FBSV is displayed as the red hatched area.  The borders of the test screen are represented by the grey rectangle.


PDF

A pdf file of the chart can be created automatically by selcting pdf
