The monitor may be viewed directly or via a mirror.

Direct viewing

Place the monitor at or slightly above the patient‘s eye level. The program can be configured for any viewing distance but in practice viewing distances of less than 3 metres are not advised because:

• The smaller letter sizes will not be reproduced well on the monitor
• Some refractive compensation for viewing distance may become necessary

Viewing via a mirror






To maximize the screen viewing distance within the consulting room, most practitioners prefer to have the patient view the test chart via a mirror.

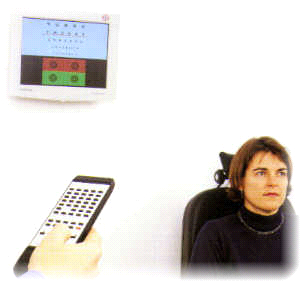

Mount the monitor on a shelf or bracket above the patient's head. Ensure the mirror is correctly positioned so that the monitor is seen in the centre of the mirror.

Select Mirror optotypes from the Setup screen to mirror the optotypes.

Mounting Flat Panel Displays

Flat panel displays are relatively light and can be mounted on a shelf or fixed directly to the wall. The latter option is rather neater but you will need a monitor that:

• Has VESA compliant fittings (most do but check)
• A separate power supply (not incorporated into the base unit
