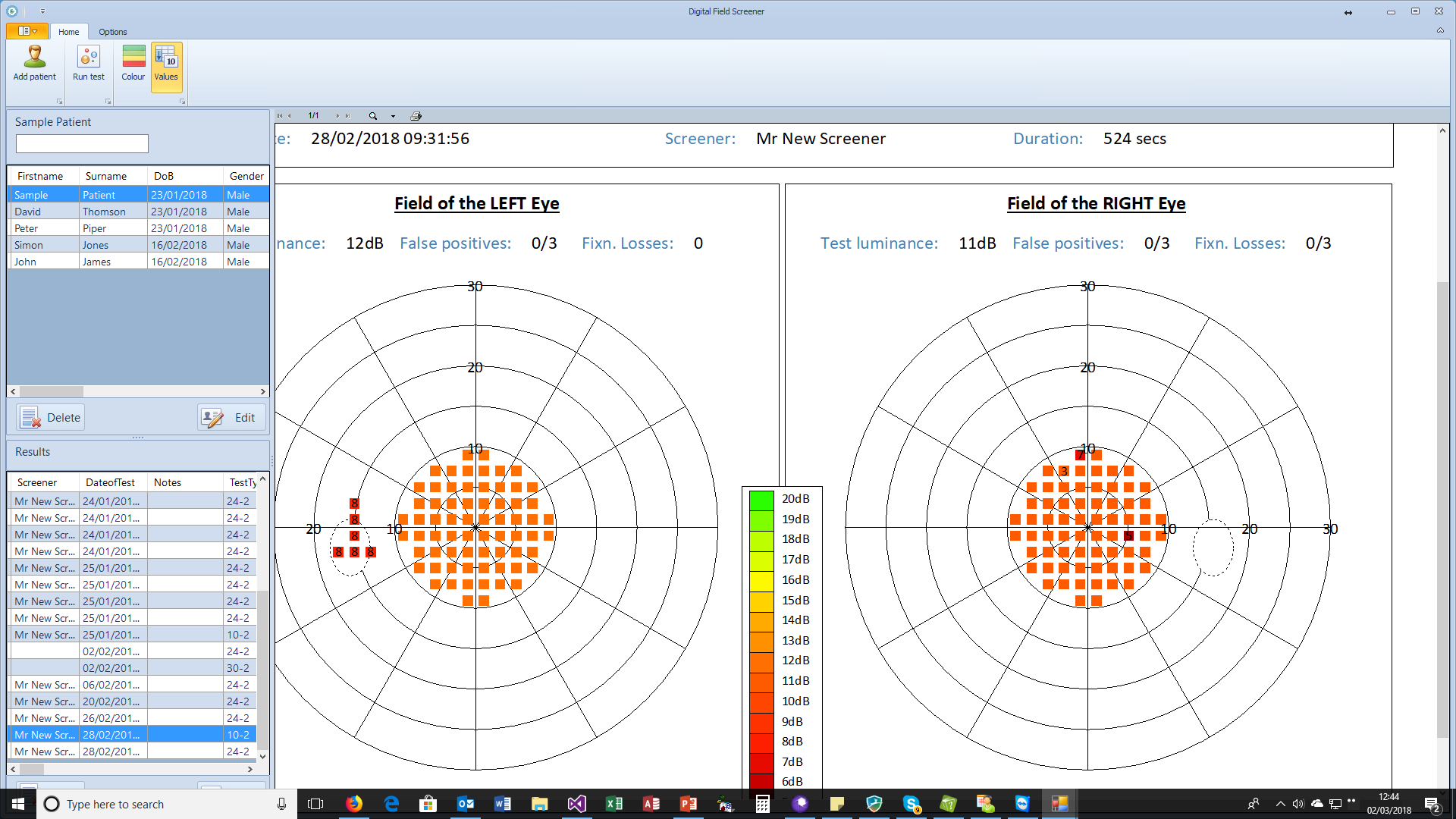

To display the results of a visual field examination, select the patients name from the top list and the results from the lower list.  The chart will be displayed automatically (see example below).



The chart header and the logo can be customised from the Settings...Report screen.


If a black and white printer is to be used, the chart can be shown as a grayscale by toggling the Colour option in the Home toolbar.


The dB values may be superimposed for any stimulus points not seen at the working threshold by toggling the Values option in the Home toolbar.

Zooming the chart

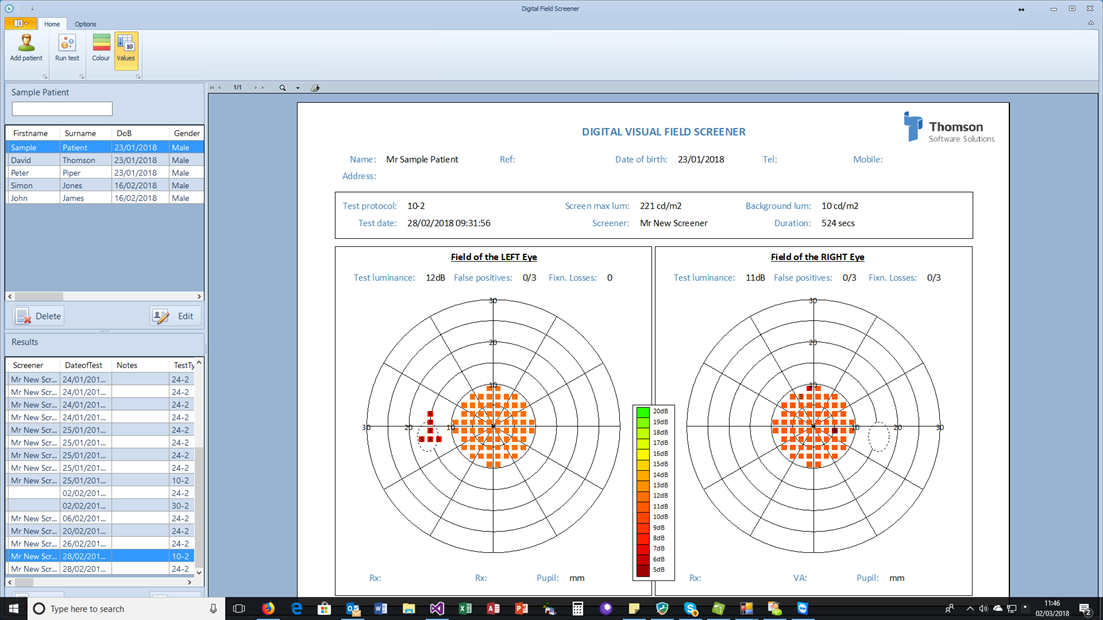

The chart may be viewed at various magnifications by selecting the magnifying glass icon on the toolbar directly above the print preview window, or by simply clicking on the chart (see below).  The magnified chart can then be scrolled by dragging the chart as required.
